Multiple views of the host, testing modules, and extended connection modes.
| Weight | 22.1 kg | Pressure Range (Accuracy) |
0~1 kPa (0.2% FS)
0~100 kPa (0.2% FS)
0~500 kPa (0.25% FS)
|
| Dimensions (L*W*H) |
440 mm*400 mm*200 mm | ||
| Interface | USB 3.0, Type C 3.0 and RS232 |
Sampling Frequency | 1-10 Hz (adjustable) |
| Storage | 64 GB | Software | LGT Pressure Threshold Software V2.0 |
| RAM | 8 GB | System | Ubuntu |
| Power | DC 24 | Language | Chinese, English |

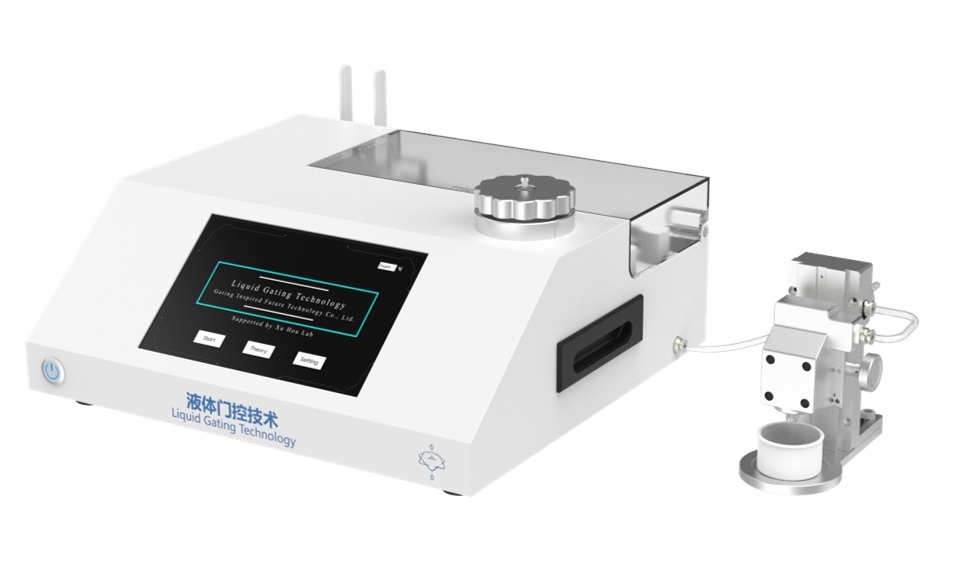

The Liquid Property Measurement Module is designed based on the classic physical chemistry method of measuring liquid surface tension by the maximum bubble pressure method, and is developed for precise measurement of liquid surface tension and dynamic gas-liquid interfacial behavior. It is suitable for aqueous solutions, organic solvents, surfactant solutions, and other liquid systems. The module supports quick disassembly for replacement and cleaning, and works with the internal gas circuit of the liquid gating intelligent testing analyzer to precisely control gas flow and pressure. With the supporting internal software, it can automatically collect experimental data, identify peaks, and calculate surface tension. It is easy to operate, offers high measurement accuracy, and can be used in teaching experiments, scientific research, and industrial testing.
| Weight | 1.1 kg | ||
| Material | Aluminum alloy housing | ||

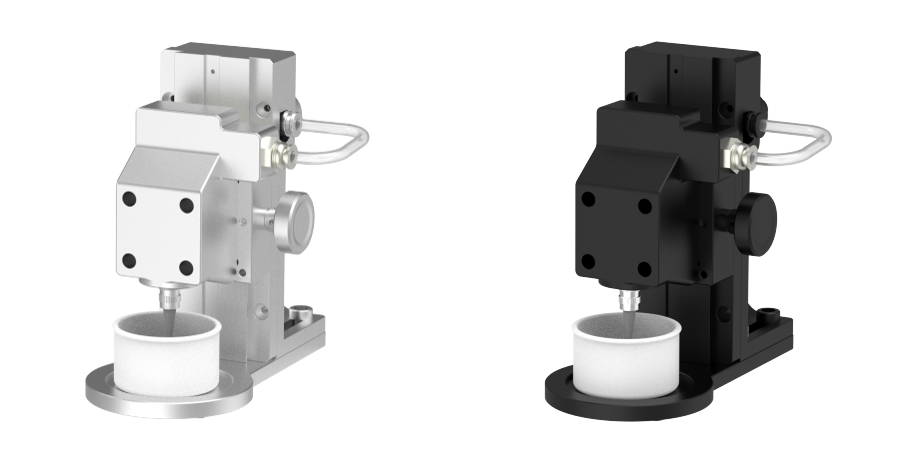

| Color | Black and silver options | ||
| This module supports liquid surface-tension measurement and is used with 22G and 23G needles. | |||
