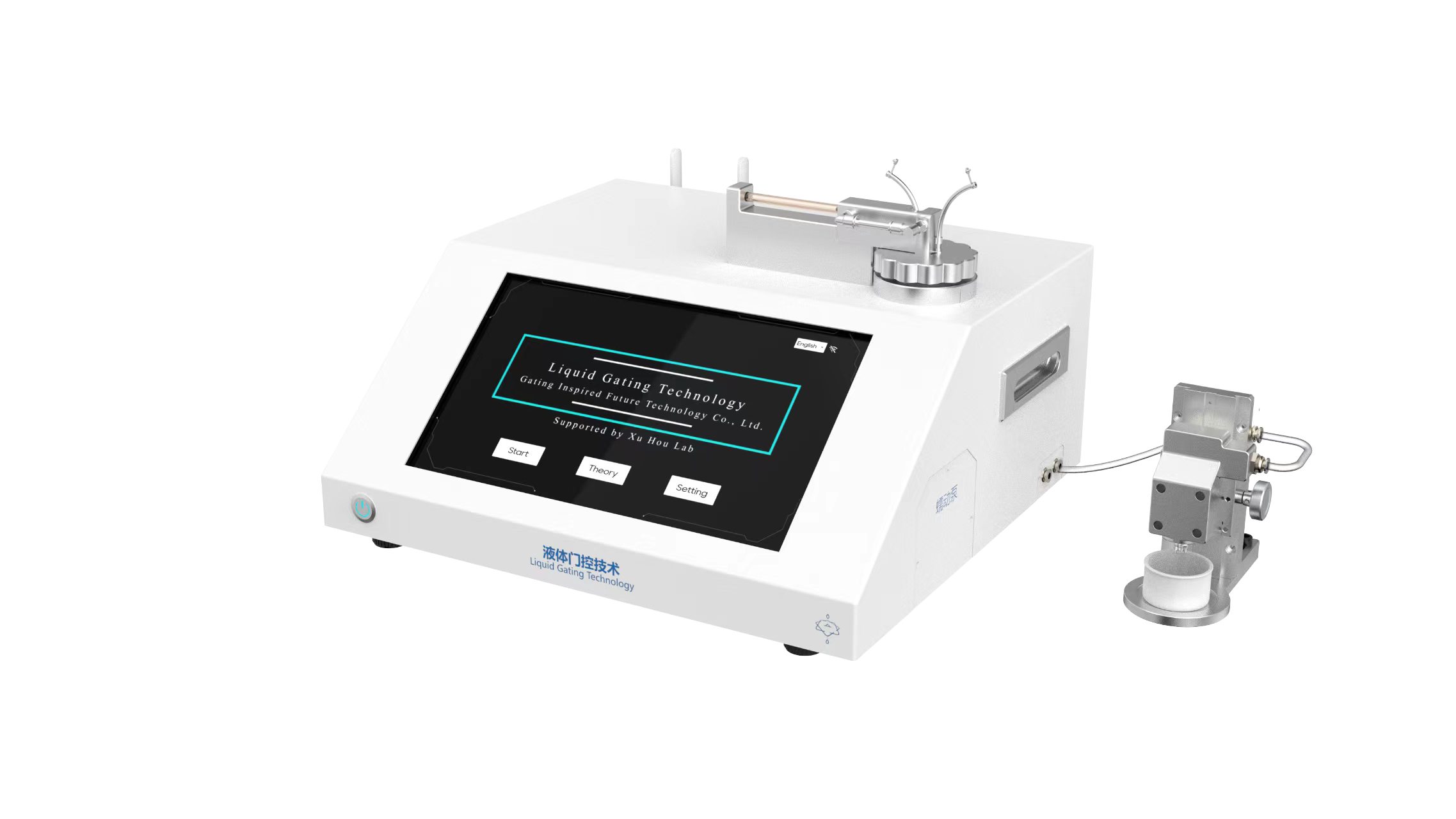

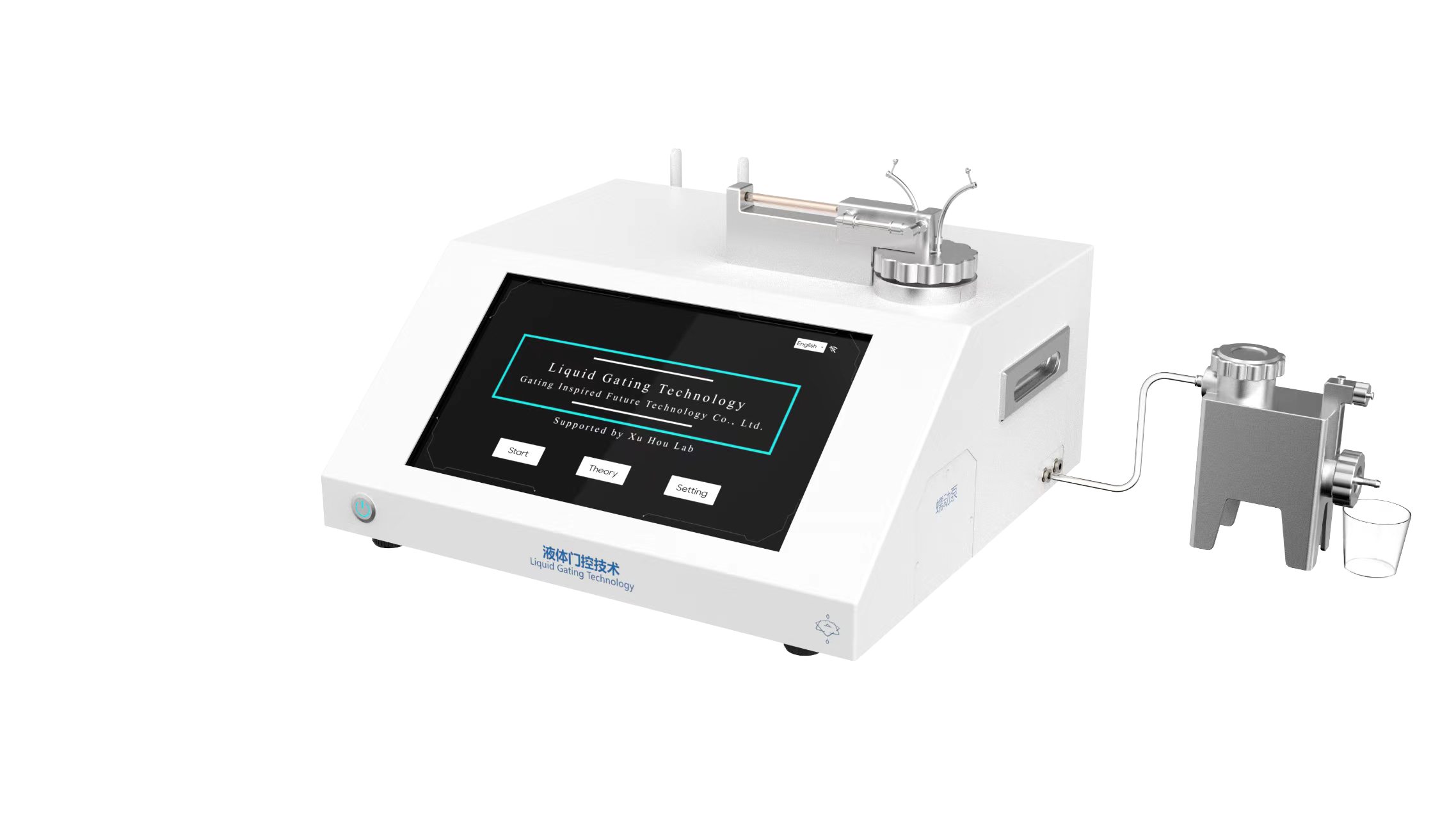

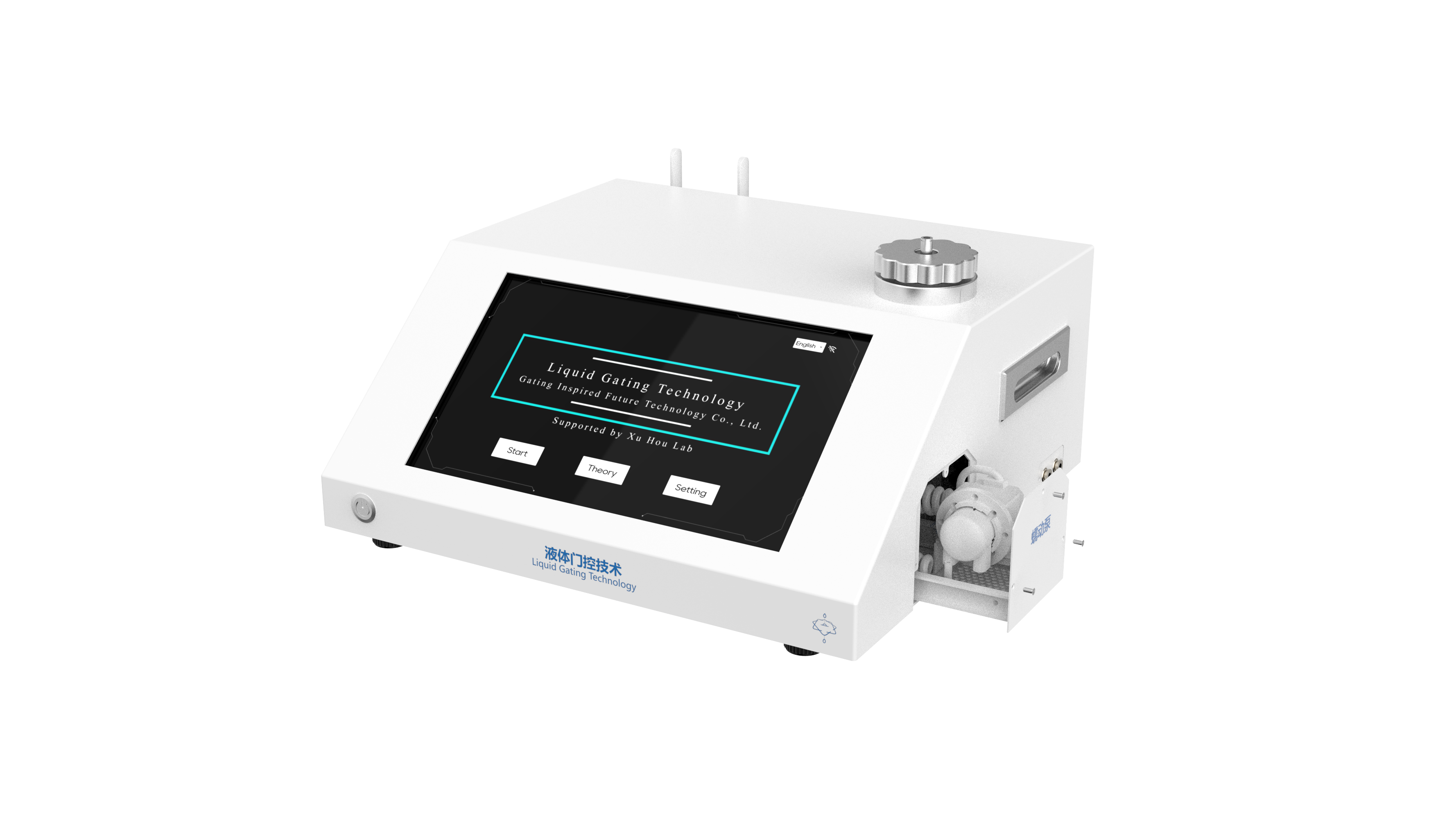

Multiple views of the host, testing modules, and extended connection modes.
| Weight | 22.1 kg | Pressure Range (Accuracy) |
0~1 kPa (0.2% FS)
0~100 kPa (0.2% FS)
0~500 kPa (0.25% FS)
|
| Dimensions (L*W*H) |
440 mm*400 mm*200 mm | ||
| Interface | USB 3.0, Type C 3.0 and RS232 |
Sampling Frequency | 1-10 Hz (adjustable) |
| Storage | 64 GB | Software | LGT Pressure Threshold Software V2.0 |
| RAM | 8 GB | System | Ubuntu |
| Power | DC 24 | Language | Chinese, English |
| Product Model | GIFT R1 Pro | Test Media | Non-corrosive gases and liquids |
| Pressure Supply | Constant-flow syringe pump, constant-flow peristaltic pump, or combined supply | Pressure Range | 0-1 kPa; 0-100 kPa; 0-500 kPa |
| Measured Pressure Limit | 230 kPa | Measured Flow Limit | About 21 sccm under 20 sccm range |
| Flowmeter Options | 20 SCCM; 1000 SCCM; 50 L | Flow Sensor Range | Range ratio 100:1; 0.2-20 sccm under 20 sccm range |
| Temperature Sensor | -40 to 130 deg C | Humidity Sensor | 0-100% |
| Pressure Sensor | Overload pressure 150% FS; 100 kPa sensor supports 0-150 kPa | Pore-Distribution Consumable | Compound electronic fluorinated liquid |
| Transmembrane Threshold Test | Gas/liquid transport; 0-1 kPa, 0-100 kPa, 0-500 kPa | Pore Distribution Test | Combined syringe and peristaltic pressure supply; pore range up to 100 um |
| Air Permeability | Syringe pump supply; 0-1 kPa, 0-100 kPa; suitable for 10-100 nm pores | Water Permeability | Syringe pump supply; 0-100 kPa, 0-500 kPa; suitable for pores larger than 100 nm |
| Surface Tension | Syringe pump supply; 0-1 kPa; surface tension below 100 mN/m | Liquid Density | Syringe pump supply; 0-1 kPa |
| Visual Detection | Supports visual detection extension for material identification and detection scenarios. | ||
