Liquid Gating Pressure Threshold Instrument

The liquid gating pressure threshold instrument is designed for intelligent pressure-threshold testing and analysis of liquid gating membranes. It integrates transmembrane fluid control, real-time measurement and display, optional testing ranges, remote monitoring over LAN or Wi-Fi, and AI-assisted data analysis, helping users evaluate pressure thresholds, pore-size parameters, permeability behavior, and confined interfacial transport in teaching and research.

Product Details

Product Gallery

Liquid Gating-Based Porous Interface & Structure Analyzer Detail Display

Multiple views of the host, testing modules, and extended connection modes.

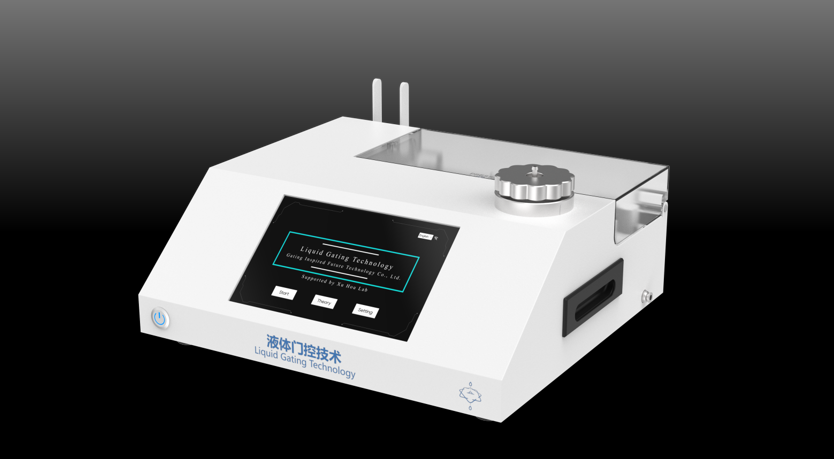

Liquid Gating-Based Porous Interface & Structure Analyzer host appearance — Host Appearance and Built-in Peristaltic Pump

Liquid gating testing module — Multiphase Fluid Transport Module Connection

Extended transport module — Liquid Property Measurement Module Connection

Technical Parameters

Detailed Parameters

Weight	22.1 kg	Pressure Range (Accuracy)	0~1 kPa (0.2% FS) 0~100 kPa (0.2% FS) 0~500 kPa (0.25% FS)
Dimensions *(LWH)*	440 mm400 mm200 mm	Pressure Range (Accuracy)	0~1 kPa (0.2% FS) 0~100 kPa (0.2% FS) 0~500 kPa (0.25% FS)
Interface	USB 3.0, Type C 3.0 and RS232	Sampling Frequency	1-10 Hz (adjustable)
Storage	64 GB	Software	LGT Pressure Threshold Software V2.0
RAM	8 GB	System	Ubuntu
Power	DC 24	Language	Chinese, English

Liquid Gating Pressure Threshold Instrument product detail

Product Parameters

Power	DC 12	Weight	15.6 kg
Dimensions	L400 mm * W300 mm * H200 mm	Pressure Range	0-1 kPa; 0-100 kPa
Interface	USB 3.0, Type-C 3.0, RS232	Pressure Accuracy	0.2% FS (1 kPa); 0.2% FS (100 kPa)
Storage	64 GB	Sampling Frequency	1-10 Hz adjustable
Language	Chinese, English	Software	LGT
System	Ubuntu	Core Module	CPU 2 GHz / RAM 4 GB
