Multiple views of the host, testing modules, and extended connection modes.
| Weight | 22.1 kg | Pressure Range (Accuracy) |
0~1 kPa (0.2% FS)
0~100 kPa (0.2% FS)
0~500 kPa (0.25% FS)
|
| Dimensions (L*W*H) |
440 mm*400 mm*200 mm | ||
| Interface | USB 3.0, Type C 3.0 and RS232 |
Sampling Frequency | 1-10 Hz (adjustable) |
| Storage | 64 GB | Software | LGT Pressure Threshold Software V2.0 |
| RAM | 8 GB | System | Ubuntu |
| Power | DC 24 | Language | Chinese, English |

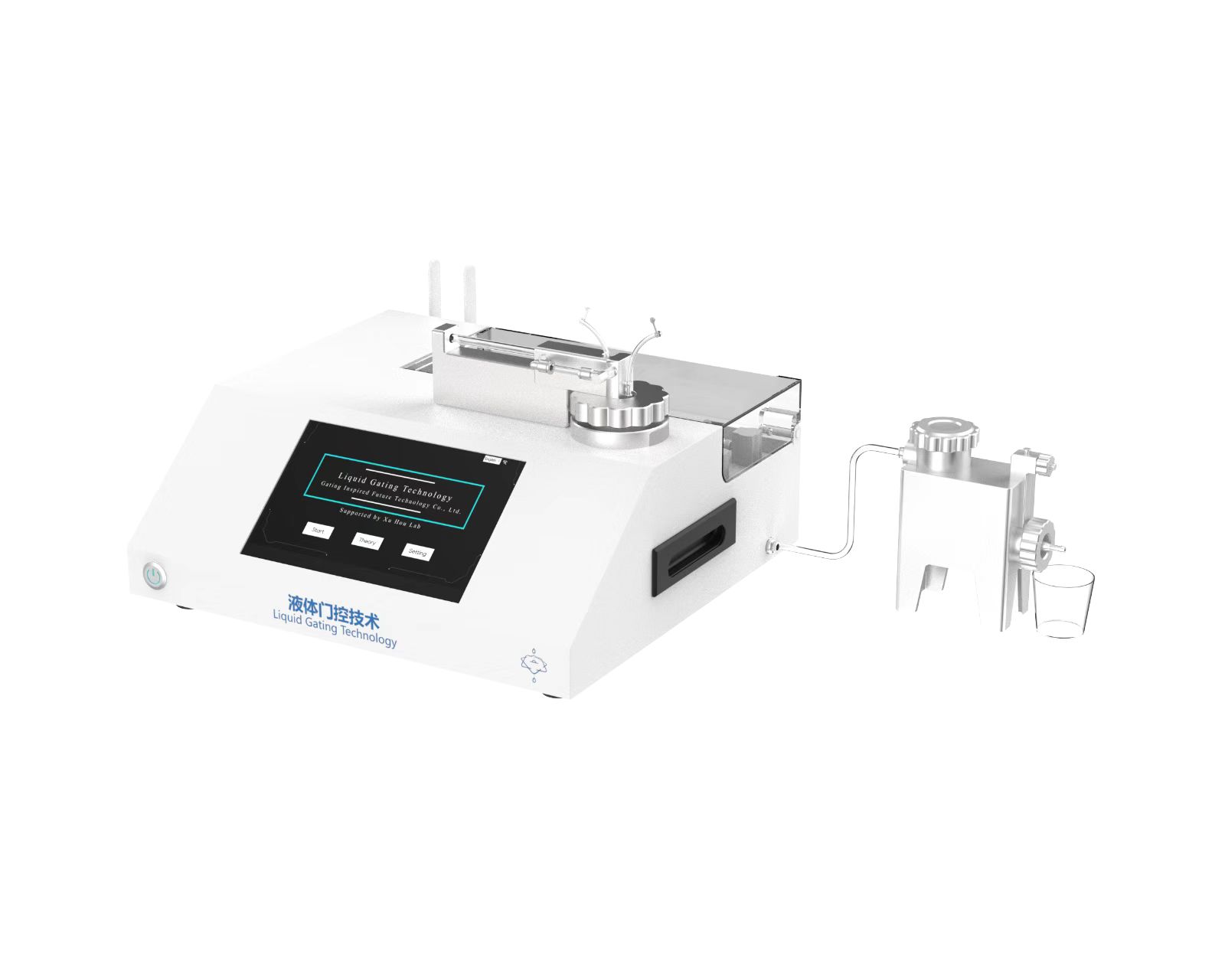

The Multiphase Fluid Transport Module extends the transport medium from gas to liquid and gas-liquid mixed phases through fluid injection, enabling expansion from gas-liquid-solid three-phase interfaces to liquid-liquid-solid three-phase interfaces. It is suitable for aqueous solutions, organic solvents, surfactant solutions, and other liquid systems. The module connects to the liquid gating intelligent testing analyzer through quick connectors, making installation convenient, cleaning easy, corrosion resistance strong, and operation stable in complex environments. Its operation is consistent with gas transport, supports intelligent control through the instrument software, and allows flexible adjustment of flow rate, sampling frequency, pressure range, and other parameters for precise transport-process control and data acquisition.
In research scenarios, the module is highly extensible. Users can freely modify and adapt functions as needed, and it can be applied to frontier research fields such as microfluidics, multiphase separation, and droplet manipulation as a versatile and adaptable intelligent fluid-transport solution.
