Multiple views of the host, testing modules, and extended connection modes.
| Weight | 22.1 kg | Pressure Range (Accuracy) |
0~1 kPa (0.2% FS)
0~100 kPa (0.2% FS)
0~500 kPa (0.25% FS)
|
| Dimensions (L*W*H) |
440 mm*400 mm*200 mm | ||
| Interface | USB 3.0, Type C 3.0 and RS232 |
Sampling Frequency | 1-10 Hz (adjustable) |
| Storage | 64 GB | Software | LGT Pressure Threshold Software V2.0 |
| RAM | 8 GB | System | Ubuntu |
| Power | DC 24 | Language | Chinese, English |

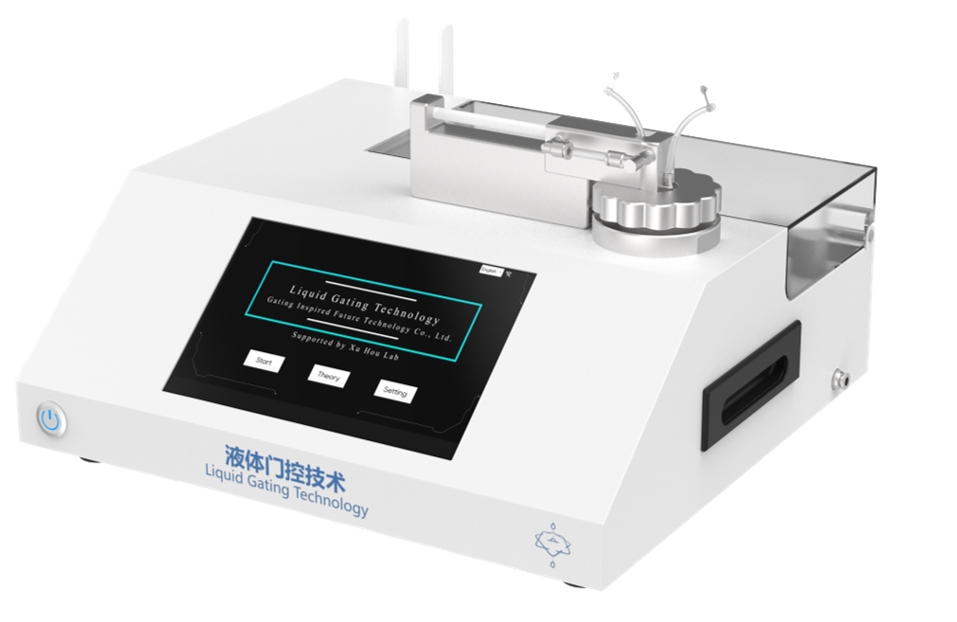

The Visual Detection Module innovatively converts pressure signals collected by the liquid gating intelligent testing analyzer into intuitive visual displacement signals. By driving the movement of marker balls, it responds to pressure changes in real time. It is intuitive to operate, requires no external energy input, and is especially suitable for teaching demonstrations and science outreach. The module supports quick disassembly and cleaning, can work with the instrument software, and enables intelligent control from signal acquisition to visual feedback, improving experimental interaction and display effects.
In addition, it has broad potential in scientific detection, such as target-ion detection in water systems and recognition of biological drug molecules. As a portable, power-free sensing platform suitable for on-site detection, it expands the instrument's integrated application value in frontier research and industrial testing.
| Weight | 0.6 kg | ||
| Material | Aluminum alloy housing | ||
| This module visualizes gas release, with a built-in glass rotor supporting a maximum flow rate of 2.5 mL/min. | |||
